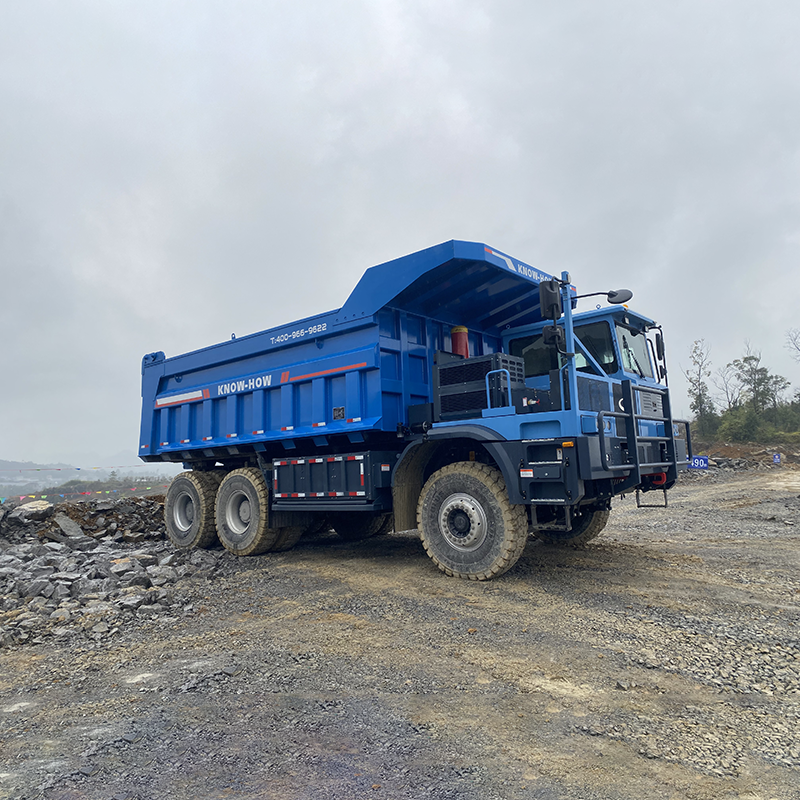

NKE105D7 electric dump truck

724KWH big battery capacity electric dump truck, long mileage range, Front suspension Hydro-pneumatic spring+push rod, Rear suspension Leaf spring+Balance shaft+push rod, Four circuit drum air brake+regenerative braking, Full hydraulic steering, Deppkaler/Hyva Lifting Cylinder


Product Parameters


NKE105D7 electric dump truck

Our Advantages


KNOW-HOW Dump Truck owns patent electricity control system :

→ Battery system
→ Motor system

→ Operation system



Fast Charging Battery System :

-- Electric Power from 20% to 98%


Charging time :

-- 1 Hour.


Mileage :

-- 400 km ( DownHill or Comprehensive operating condition )


Battery Replace :

-- 5-10 mins


Zero Emission , Environmental friendly , CATL Battery

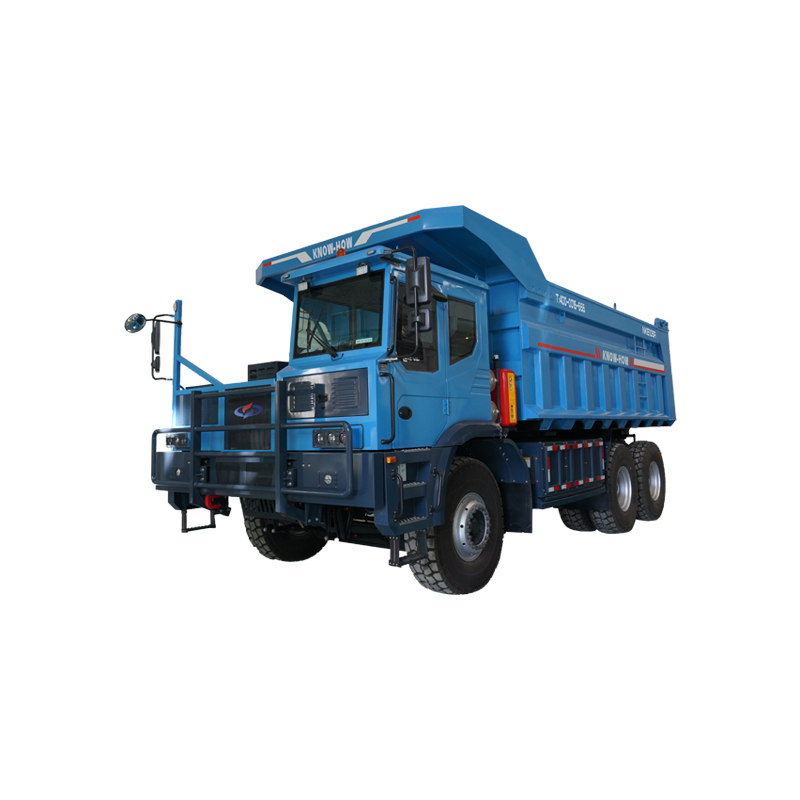

NKE105D7 electric dump truck


High energy modular battery system


High power 1C double gun charging mode, charging for 1 hour;

Can realize power change: suitable for heavy load uphill condition;


New design of battery box layout, improve design strength, increase the ground clearance of battery box (> 750mm,),  improve vehicle mobility and maintenance convenience;


Compared with competitive products in the industry, the wheelbase is 300mm lower, the turning radius is shorter, and the mobility is more flexible.


Temperature-free: adopt constant temperature battery management technology  under air conditiner water cooling, temperature rangesl 28ºC ~ 35ºC, keeping the battery in the best working condition

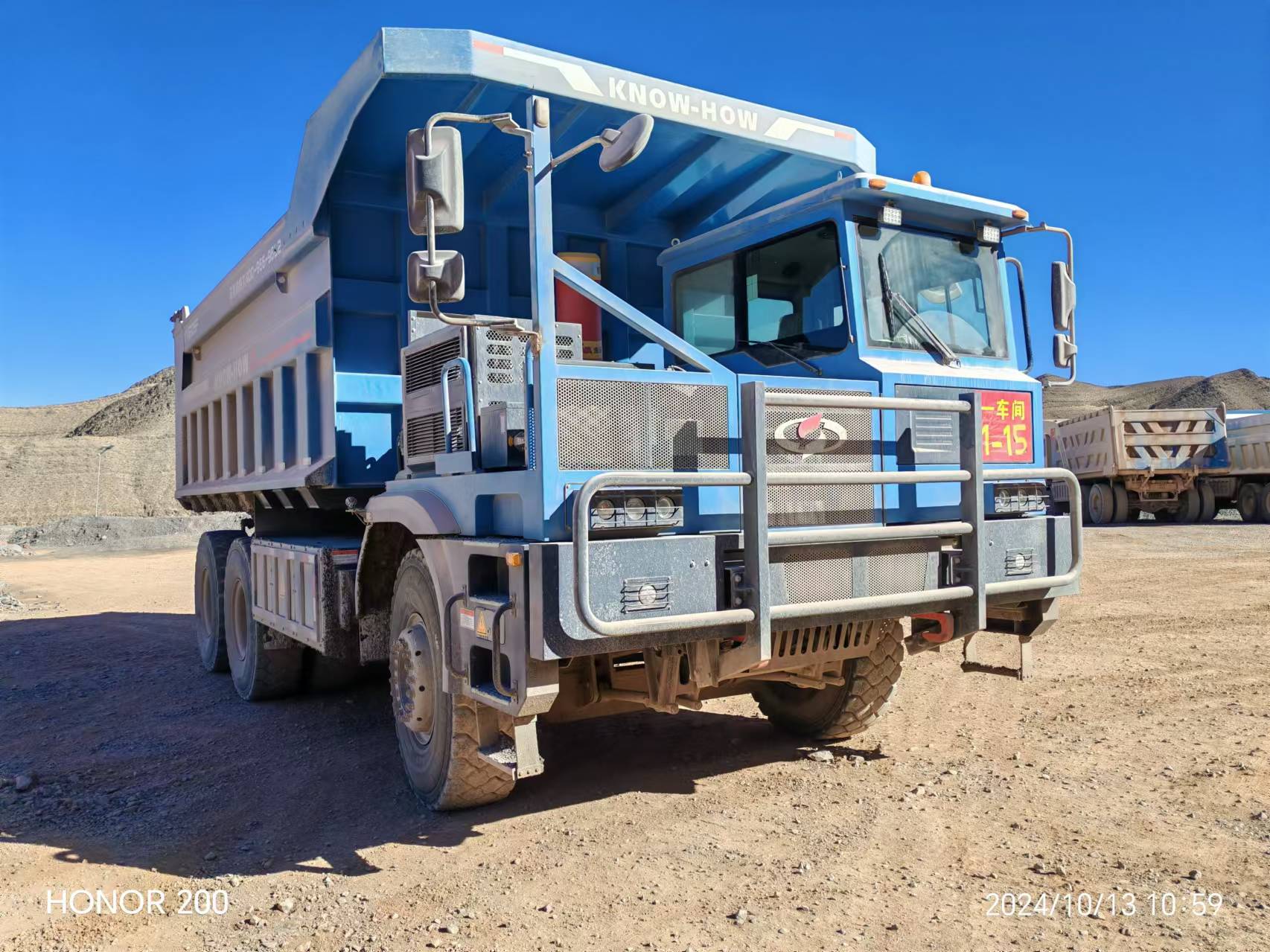

NKE105D7 electric dump truck


Enhanced framework , overload capacity improve 20% , Average non-stop working time improve 50% than competing products


- Rigid Framework

→ 12+12mm thickness of trapezoidal structure

→ 450mm  section ,better anti-bending and torsional resistance

→ Anti -curved section modulus increases 40%, adapting well to the harsh working conditions in mining area

→ Simulation analysis + test bench verification + working condition verification more than 200,000 km, reliable and guaranteed


- Suspension System

→ The split-body and sliding plate structure greatly reduces the damage rate of the spring support and avoids the failure rate of the lifting lug.

→ The front suspension adopts longitudinal thrust rod arrangement to reduce the y-direction impact force of the main spring and reduce the fracture risk of the main piece of the plate spring.

→ Equipped with polyurethane maintenance-free balance shaft, self-lubrication, good wear resistance, high reliability, while reducing maintenance costs .
