NKE105DT 396KWH CALT "T" type special mining Battery dump truck

NKE105DT full electric dump truck (BEV) equipped with 396KWH CALT "T" type special mining Battery, energy density is high, Strong shock resistance, cold endurance could reach minus 35℃



Product Parameters


Vehicle Description

Know-how Factory Directly Sale NKE105DT 105 tons grade 396kwh electrical rated loading 70 tons cargo Zero Emission Electric Truck Dumper Tipper Dump


Configuration & Parameters


Unit

NKE105DT

Vehicle Weight


kg

39000

Loading Weight


kg

66000

Max. Total Weight


kg

105000

Wheel base


mm

4410+1750

Wheel track(F./R.)


mm

2765/2635

Overall Dimension


mm

10120×3800×4150

Lifting Angle


°

48

Hopper Volume(Standard/Heap)


42/48

Turning Radius


mm

<12000

Min. Clearance


mm

420

Axle Quantity


/

3

Driving Type


/

6×4

Max. Gradeability


%

≥35

Max. Speed


Km/h

≥42

Drive Assembly

Rated Power/Peak Power

Kw

450/600

Transmission Gear

/

7 Gears AMT

Power Battery

Brand

/

CATL

Type

/

Lithium Iron Phosphating Battery

Battery Capacity

Kwh

350

Axle

Brand

/

HANDE

Axle Capacity F/M/R

t

25+40+40

Front Suspension

Type

/

Hydro-pneumatic spring+push rod

Rear Suspension

Type

/

Balance shaft+Leaf spring+push rod

Frame

Type

/

Flexible frame

Lifting System


/

Deppkaler/Hyva

Brake System


/

Double circuit drum air brake + regenerative braking

Driving Carb


/

Narrow-Body Fixed Type

Steering System


/

Full hydraulic Steering

Wheel Hub


/

11.25-25

Tyre


/

16.00R25

Vehicle Production Status


/

Mass Production

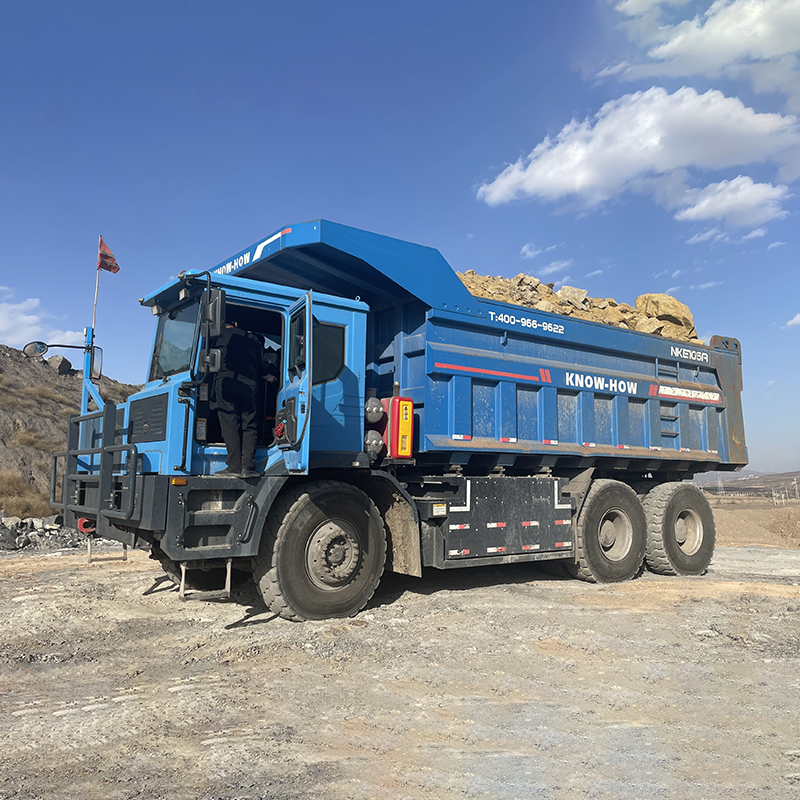

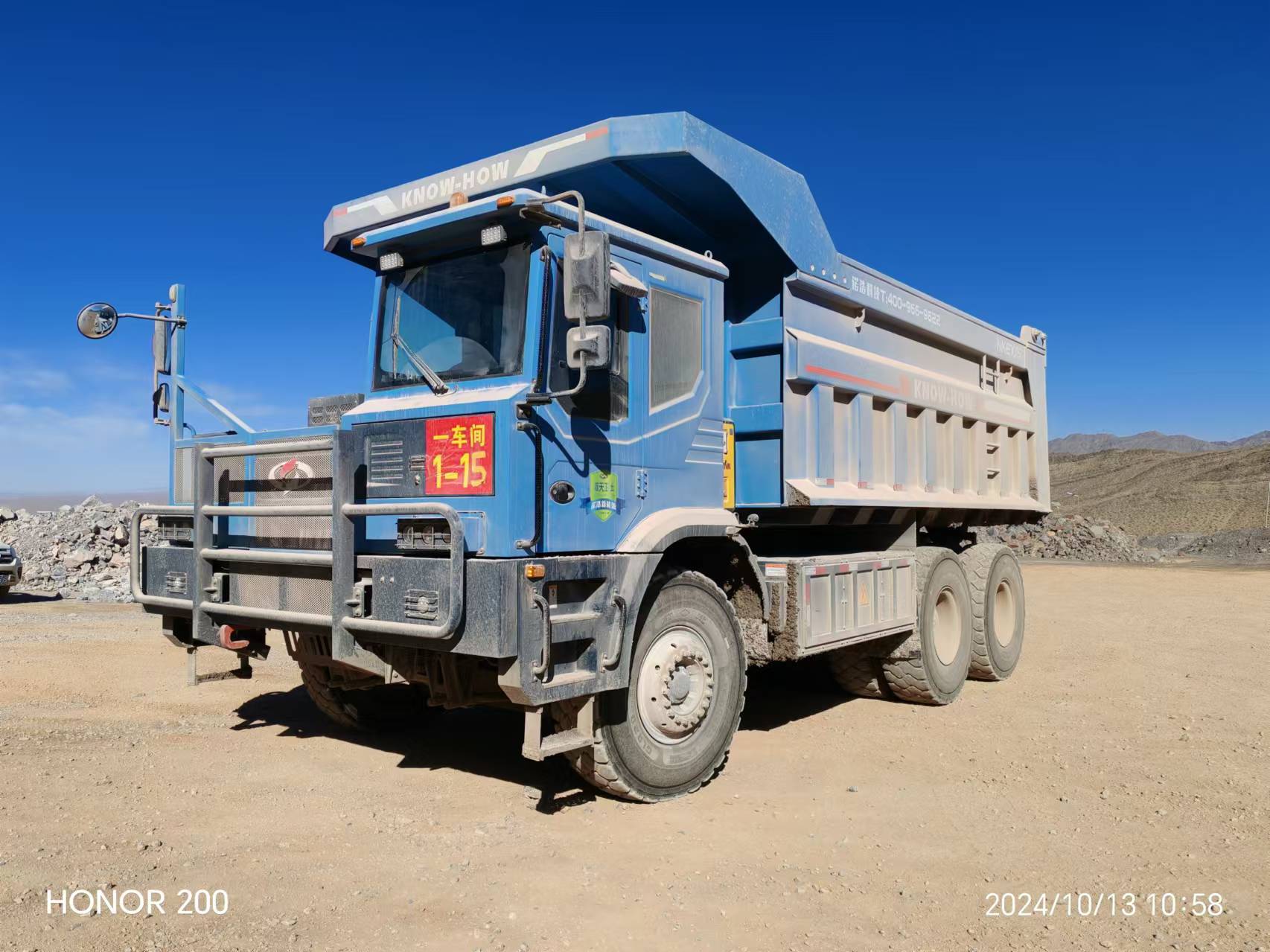

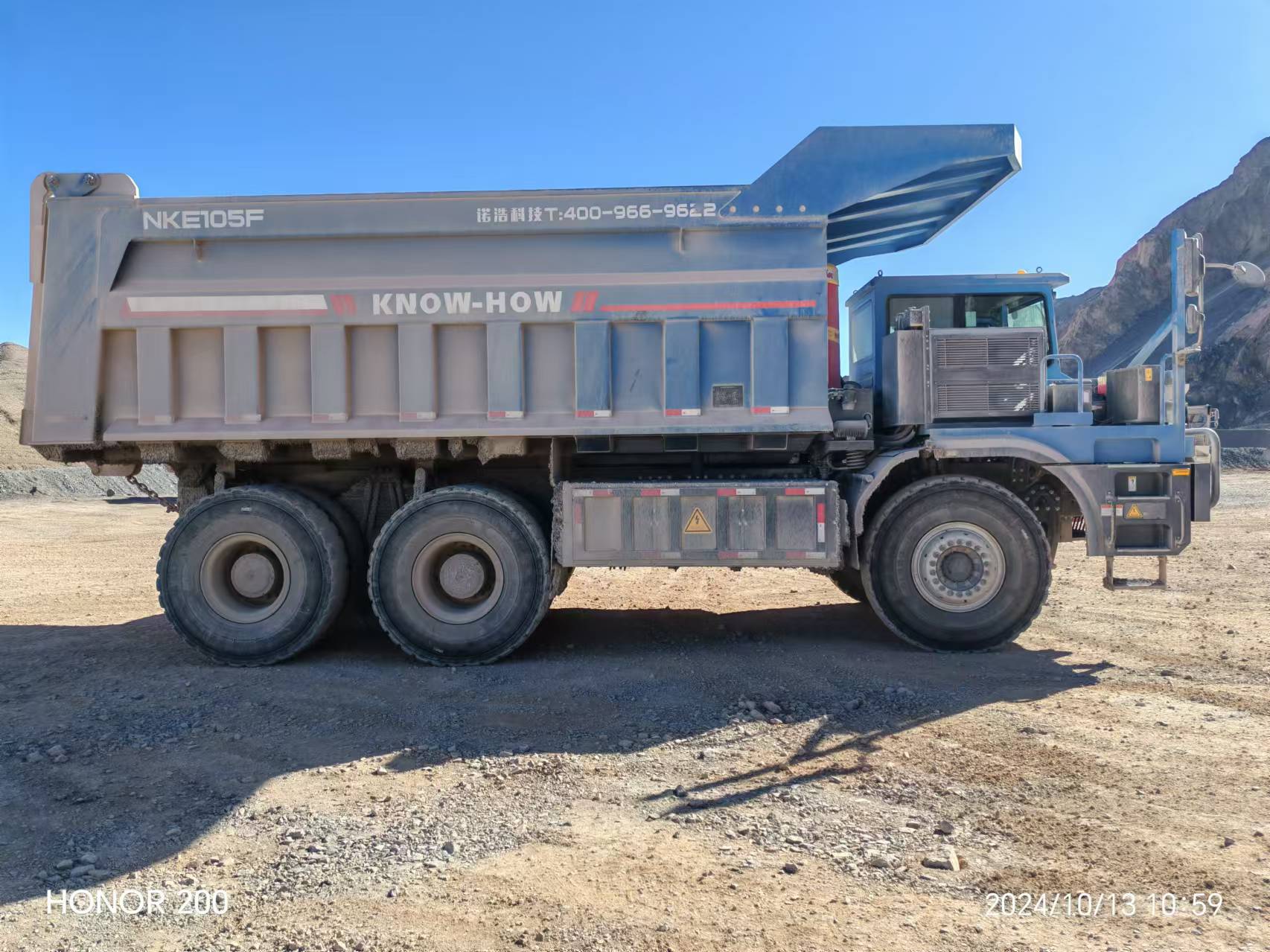

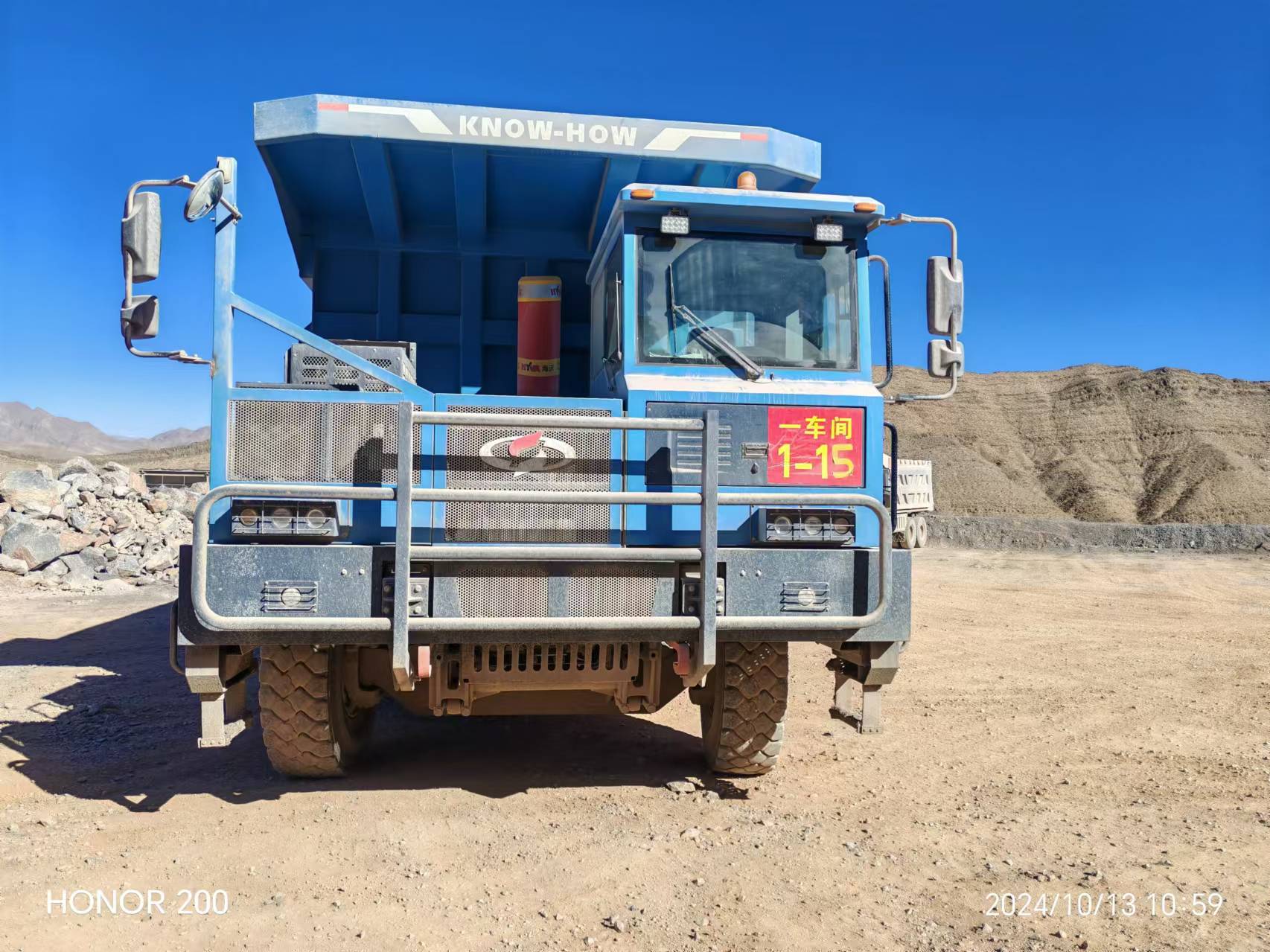

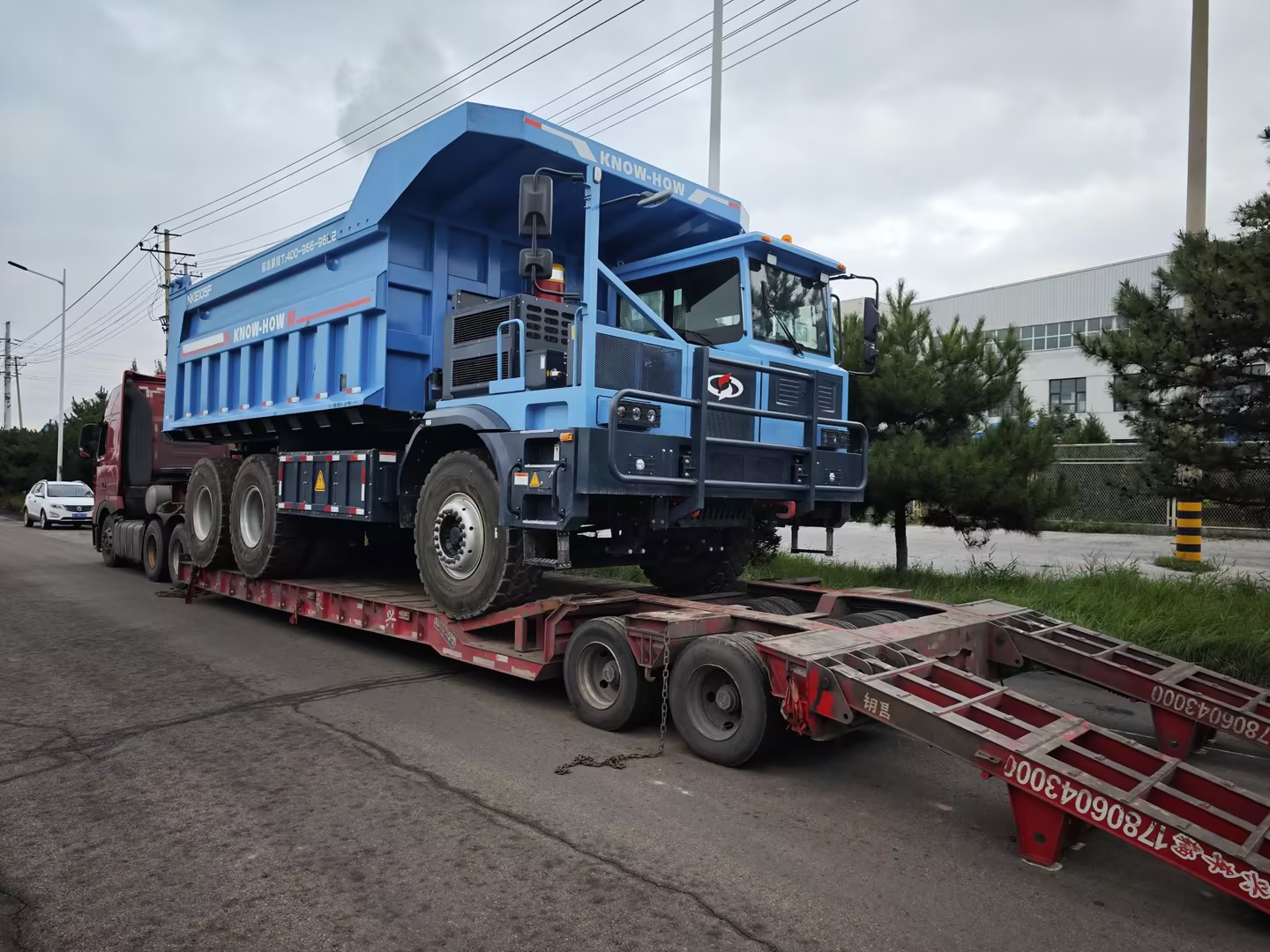

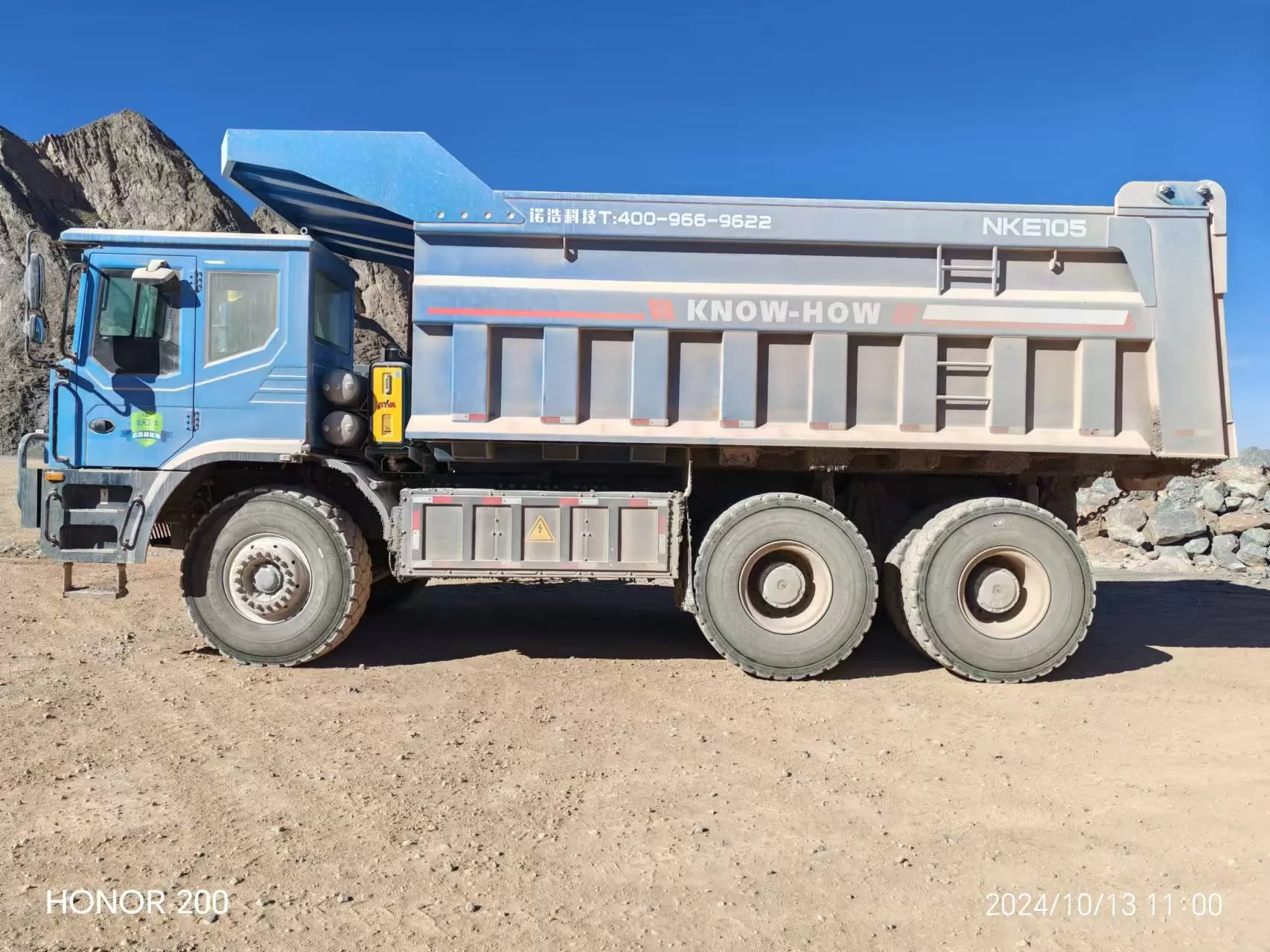

Detailed Photos

NKE105DT 396KWH CALT "T" type special mining Battery dump truck

NKE105DT 396KWH CALT "T" type special mining Battery dump truck


New Energy Driving Strengths

Electric Driving Truck Compare With Fuel Truck about the Advantage and Costing.

1. Policy: New energy electric power drive,Zero polution,Zero emission,totally fulfill local market Environmental Protection policy requirements.
2. Energy-efficient: Electric power drive could save more than 90% costing than fuel or diesel machinery.
3. People Centric: Operator drive experience will be more comfortable,Healthy and Safe,because almost no noisy,and no fuel machinery engine strenuous vibration.
4. Powerful & Flexible: Double motor driving,CATL 350 Kwh charging battery, mechanical steering hydraulic power, leaf spring, flip cab,gruarantee driver operate more easily.




Energy Supply solutions



1. Distributed charging pile,easy installation energy supplement and distributed charging




2. Centralized charging + mobile energy replacement at any time without detour.





3. Semi automatic changing station,fast and safe,need two forklifts and workers




4. Full automatic power station,one touch energy supplement,high efficiency and wisdom.




Driven Power Battery System



Mining area equip with energy density lithium iron phosphate battery

1.IP68 super protection, cast aluminum shell, greatly improve the shock resistance;

2. Up to 5000 charge and discharge cycles,up to 2.8 million degrees of discharge life, the service life is expected to be 8 years;

3. The use of air conditioning water cooling constant temperature battery management technology, temperature control 28 ~ 35ºC, keep the battery in the best working condition;


Dual braking system: Equipped with "electricity Recycle" braking on the basis of the traditional drum braking system.The vehicle has the function of energy recovery:when braking,the motor works in the state of generating electricity,which can convert the braking energy into electric energy and charge it back to the power battery, it not only reduces the wear and tear of the brake disc, prolongs the life, and also increases the vehicle's driving range.Especially suitable for heavy vehicle downhill,can keep the vehicle at a constant speed downhill.


Certifications




Project & Cooperation



FAQ


1. WHAT ARE YOUR STRENGTHS?
    (1)We have majored in the mining equipment field more than 25 years,have strong ability to research and develop main parts in the truck according to customers customized requirements,such as battery capacity,endurance mileage,gearbox function design etc,
    (2)Our mining Machinerys are much popular in North America,Mid-Europe,Mid-East,Southeast Asia,South America.
    (3)Our heavy duty Machinerys are new energy electric power drive,Zero polution,Zero emission,totally fulfill local market Environmental Protection policy requirements.
    (4)Actually,electric power drive could save more than 90% costing than fuel or diesel machinery.
    (5)We have professional after-sale service teams which could solve your trouble in timely.


2. WHICH PAYMENT METHOD CAN YOU ACCEPT?
    L/C and T/T,else payment terms are also negotiable before make a deal.

3.WE WANT TO CUSTOMIZED SOME PARTS ON TRUCK TO MATCH OUR WORK SCENE,SUCH AS TIRE,POWER,AND LOADING WEIGHT.
   It is indeed no problems,that is just right our strength,we could fulfill different customers customized requirements.Actually,there are some spare parts are optional.

4.WE WANT IMPORT PRODUCTS IN CKD OR SKD, IS THAT OK?
   This question is also no problem,we could support CKD or SKD base on different condition claims.

5.WHAT LOGISTICS WAYS YOU CAN WORK FOR SHIPMENT?
   We could ship the equipment by various transportation tools,
   (1) Our main shipment methods are by roll on & roll off or bulk shipment.
   (2) For Inland neighborhood countries arround China,we could send machinery by road or railway.
   (3) For spare parts or easy broke parts,we could send by globle express,such as UPS,DHL,TNT or Fedex.

6.WHAT IS YOUR AFTER-SALES TERMS?

(1) One-year quality guarantee or within 10000kms (depend on occur first) for overall vehicle,key main parts such as motor,battery have different guarantee period,5 years,you could inquire the sale for details guarantee items and period.
    (2) Other spare parts could be supplied by OEM at cost prices.
    (3) Provide spare parts for the easy-to-break parts.
    (4) The overseas engineers will come change spare parts and maintenance.
